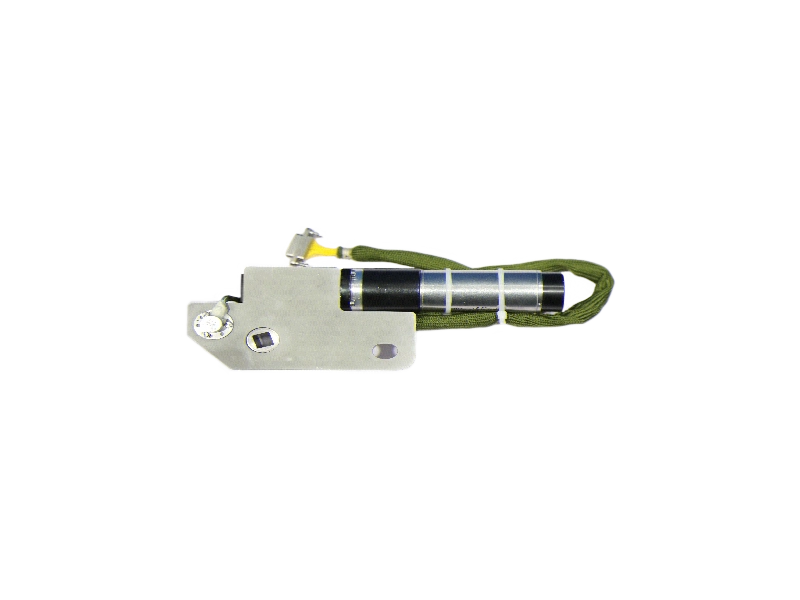

Linear Electric Actuator (60 mm Stroke, 200 N)

Linear Electric Actuator · XZ60D200

Linear electric actuator with a 60 mm stroke, 200 N rated force (>300 N maximum), and ±0.1 mm positioning accuracy. Maximum velocity >100 mm/s, bandwidth >10 Hz, response time <50 ms, −40 °C to +70 °C operation.

Request a quote View specifications
Linear Electric Actuator (60 mm Stroke, 200 N)
XZ60D200Product reference

Confirm configuration, interfaces and documentation with your inquiry.

The XZ60D200 series Linear Electric Actuators represent state-of-the-art precision control technology, featuring compact design, high power density, and exceptional reliability. These actuators are specifically engineered for high-precision attitude control systems in guided weapons and aerospace applications.

Key Features

  • High-precision position control
  • Compact and lightweight design
  • High power-to-weight ratio
  • Excellent dynamic response
  • Multiple configuration options
  • High reliability and durability

Applications

Guided Weapon SystemsAerospace Control SystemsPrecision Motion ControlMilitary Equipment

Technical Specifications

Mechanical Parameters

Stroke
60 mm
Rated Force
200 N
Maximum Force
>300 N
Positioning Accuracy
±0.1 mm

Dynamic Performance

Maximum Velocity
>100 mm/s
Bandwidth
>10 Hz
Response Time
<50 ms

Physical Parameters

Weight
Compact design
Operating Temperature
-40~+70 °C
Power Supply
28 V DC

Frequently Asked Questions

What is XZ60D200?+

Linear electric actuator with a 60 mm stroke, 200 N rated force (>300 N maximum), and ±0.1 mm positioning accuracy. Maximum velocity >100 mm/s, bandwidth >10 Hz, response time <50 ms, −40 °C to +70 °C operation.

Which specifications are published for XZ60D200?+

Mechanical Parameters — Stroke: 60 mm; Mechanical Parameters — Rated Force: 200 N; Mechanical Parameters — Maximum Force: >300 N. See the technical specifications for the complete parameter list.
