Compact 6-DoF Quartz MEMS IMU (±300 °/s, ±10–±20 g)

Quartz MEMS Inertial Measurement Unit (IMU) · CGYS30CJ3B

Compact six-degree-of-freedom quartz MEMS IMU with ±300 °/s gyroscopes and ±10 g or ±20 g accelerometers by variant, providing angular velocity, acceleration, and attitude output. Gyroscope bias stability ≤10 °/h at room temperature, ≤2 s startup, 15–20 g class, −45 °C to +85 °C.

Gyroscope SpecificationsMeasurement Range
±300 °/s
Accelerometer SpecificationsMeasurement Range
±10 g
Gyroscope SpecificationsMeasurement Range
±300 °/s
Read full specifications and measurement conditions ↓
Request a quote View specifications

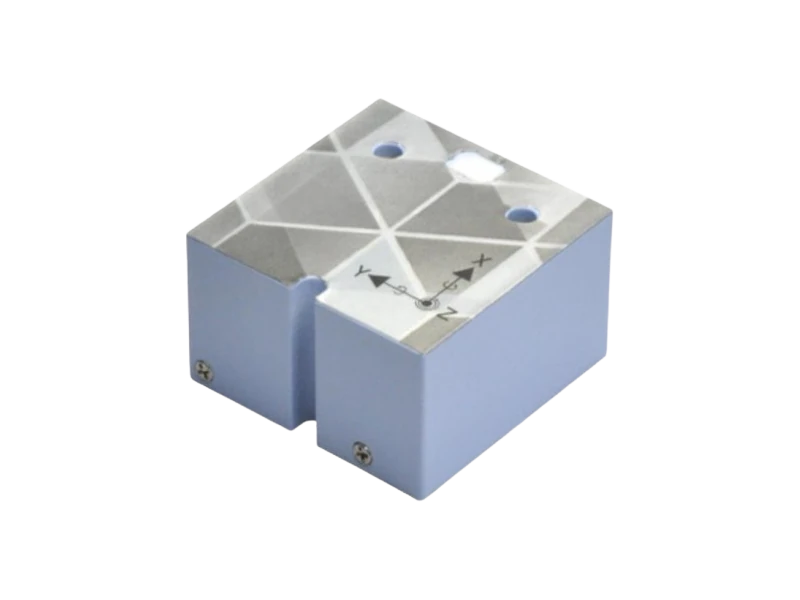

Compact 6-DoF Quartz MEMS IMU (±300 °/s, ±10–±20 g)
CGYS30CJ3BProduct reference

Confirm configuration, interfaces and documentation with your inquiry.

The CGYS30CJ3A is a compact, high-reliability 6-DOF MEMS inertial sensor, integrating three-axis quartz MEMS gyroscopes, three-axis MEMS accelerometers, signal processing circuits, and compensation software. Provides high-precision, high-resolution angular velocity, acceleration, and attitude output, suitable for navigation, motion tracking, and stabilization.

Key Features

  • Compact 6-DOF MEMS IMU
  • 3-axis quartz MEMS gyroscope + 3-axis MEMS accelerometer
  • High-precision, high-resolution output
  • Digital compensation and calibration
  • Navigation, motion tracking, stabilization

Applications

NavigationMotion trackingStabilizationRoboticsAerospace

Technical Specifications

Key Technical Specifications

Power Supply Voltage
5 ± 0.2 V
Operating Current
19 ± 5 mA
Weight
15 ± 5 g
Startup Time
≤2 s

Gyroscope Specifications

Measurement Range
±300 °/s
Scale Factor
1 ± 0.005
Scale Factor Nonlinearity
≤200 ppm
Scale Factor Repeatability
≤200 ppm
Scale Factor Asymmetry
≤200 ppm
Cross-Axis Sensitivity
≤0.005
Threshold / Resolution
≤0.005 °/s
Bias (Full Temperature)
±0.05 °/s
Bias Stability (Room Temp)
≤10 °/h
Bias Stability (Full Temp)
≤50 °/h
Bias Repeatability
≤15 °/h
Angular Random Walk
≤0.12 °/√h
Bias Instability (Allan Deviation)
2 °/h
Bandwidth (Amplitude)
200 Hz
Delay Time
2.0 ms

Accelerometer Specifications

Measurement Range
±10 g
Bias (Full Temperature)
±10 mg
Bias Stability (Room Temp)
≤0.1 mg
Bias Stability (Full Temp)
≤1 mg
Bias Repeatability
≤0.1 mg

Environmental Adaptability

Vibration (6.06g RMS, 20Hz–2kHz)
≤36 °/h / mg
Shock (Half-Sine, 200g, 6ms)
≤36 °/h / mg
Operating Temperature
-45 ~ +85 ℃
Storage Temperature
-55 ~ +85 ℃

Key Technical Specifications

Power Supply Voltage
5 ± 0.2 V
Operating Current
≤100 mA
Weight
≤20 g
Startup Time
≤2 s

Gyroscope Specifications

Measurement Range
±300 °/s
Scale Factor
1 ± 0.005
Scale Factor Nonlinearity
≤200 ppm
Scale Factor Repeatability
≤200 ppm
Scale Factor Asymmetry
≤200 ppm
Cross-Axis Sensitivity
≤0.005
Threshold / Resolution
≤0.005 °/s
Bias (Full Temperature)
±0.05 °/s
Bias Stability (Room Temp)
≤10 °/h
Bias Stability (Full Temp)
≤30 °/h
Bias Repeatability
≤15 °/h
Angular Random Walk
≤0.08 °/√h
Bias Instability (Allan Deviation)
2 °/h
Bandwidth (Amplitude)
150 Hz
Delay Time
2.0 ms

Accelerometer Specifications

Measurement Range
±20 g
Bias (Full Temperature)
±10 mg
Bias Stability (Room Temp)
≤0.5 mg
Bias Stability (Full Temp)
≤1.5 mg
Bias Repeatability
≤0.5 mg

Environmental Adaptability

Vibration (6.06g RMS, 20Hz–2kHz)
≤36 °/h / mg
Shock (Half-Sine, 200g, 6ms)
≤36 °/h / mg
Operating Temperature
-45 ~ +85 ℃
Storage Temperature
-55 ~ +85 ℃
  1. [1]This series covers multiple variants (one specification block set per variant); figures differ by variant — confirm the exact variant at inquiry.

Package Information

Technical Drawings

Quartz MEMS IMU CGYS30CJ3A
Dimensions Drawingdimensions
Quartz MEMS IMU CGYS30CJ3B
Dimensions Drawingdimensions

Frequently Asked Questions

What is CGYS30CJ3B?+

Compact six-degree-of-freedom quartz MEMS IMU with ±300 °/s gyroscopes and ±10 g or ±20 g accelerometers by variant, providing angular velocity, acceleration, and attitude output. Gyroscope bias stability ≤10 °/h at room temperature, ≤2 s startup, 15–20 g class, −45 °C to +85 °C.

Which specifications are published for CGYS30CJ3B?+

Key Technical Specifications — Power Supply Voltage: 5 ± 0.2 V; Key Technical Specifications — Operating Current: 19 ± 5 mA; Key Technical Specifications — Weight: 15 ± 5 g. Measurement conditions: This series covers multiple variants (one specification block set per variant); figures differ by variant — confirm the exact variant at inquiry. See the technical specifications for the complete parameter list.
