D-Q-JDW-LTYS13CJ1X
LTYS13CJ1B
Tri-axis quartz MEMS gyroscope, featuring ultra-low noise, exceptional bias stability, and superior environmental adaptability. Designed for aerospace, navigation, and high-end industrial applications.

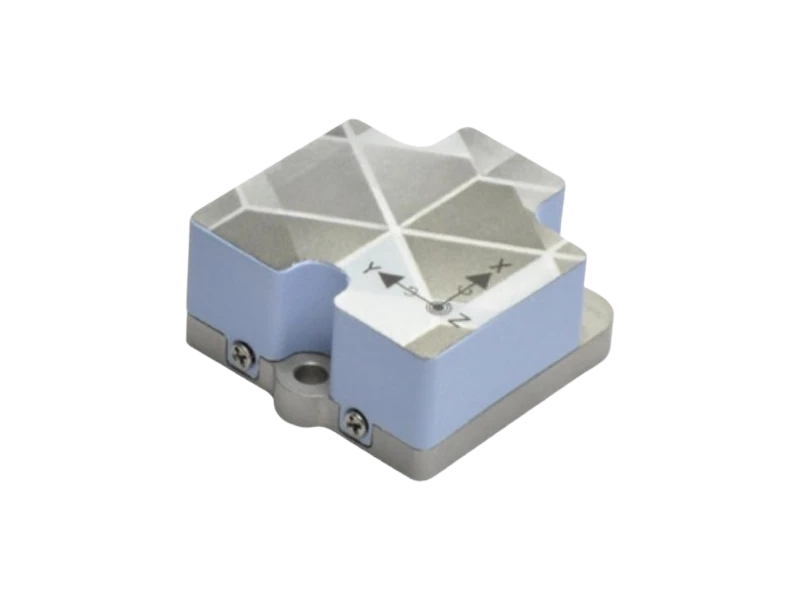

The LTYS13CJ1A is a tri-axis quartz MEMS gyroscope with three orthogonally mounted single-axis gyros. It delivers exceptional performance with ultra-low noise, superior bias stability, and outstanding environmental adaptability. Featuring advanced micromachining technology, compact structure, and full solid-state design, it provides reliable real-time angular velocity measurements for critical aerospace, navigation, and high-end industrial applications.
Key Features
- Tri-axis quartz MEMS gyroscope
- Ultra-low noise and exceptional bias stability
- Superior environmental adaptability
- Real-time angular velocity output for all axes
- Compact, lightweight, fast startup
- Full solid-state design, high reliability
- Strong resistance to shock and vibration
- Designed for aerospace and high-end industrial applications
Applications
Aerospace navigation and controlSatellite attitude controlAircraft flight control systemsHigh-precision motion detectionStabilization and control systemsMarine navigationIndustrial automation and robotics
Specifications
Performance Specifications
| Power Supply Voltage | V5 ± 0.2 |
| Operating Current | mA80 ± 5 |
| Weight (excluding leads) | g30 ± 5 |
| Startup Time | s≤3 |
| Measurement Range | °/s±200 |
| Scale Factor | -1 ± 0.005 |
| Scale Factor Nonlinearity | ppm≤200 |
| Scale Factor Repeatability | ppm≤300 |
| Scale Factor Asymmetry | ppm≤300 |
| Cross-Axis Sensitivity | -≤0.005 |
| Threshold / Resolution | °/s≤0.005 |
| Bias (Full Temperature) | °/s±0.03 |
| Bias Stability (Room Temp, 10s Std Dev) | °/h≤10 |
| Bias Stability (Full Temp, 10s Std Dev) | °/h≤20 |
| Bias Repeatability | °/h≤20 |
| Angular Random Walk | °/√h≤0.08 |
| Bias Instability (Allan Deviation) | °/h≤5 |
| Bandwidth (Amplitude) | Hz≥120 |
| Delay Time (within bandwidth) | ms√2.0 |
Performance Specifications
| Power Supply Voltage | V5 ± 0.2 |
| Operating Current | mA80 ± 5 |
| Weight (excluding leads) | g30 ± 5 |
| Startup Time | s≤3 |
| Measurement Range | °/s±200 |
| Scale Factor | -1 ± 0.005 |
| Scale Factor Nonlinearity | ppm≤200 |
| Scale Factor Repeatability | ppm≤300 |
| Scale Factor Asymmetry | ppm≤300 |
| Cross-Axis Sensitivity | -≤0.005 |
| Threshold / Resolution | °/s≤0.005 |
| Bias (Full Temperature) | °/s±0.03 |
| Bias Stability (Room Temp, 10s Std Dev) | °/h≤10 |
| Bias Stability (Full Temp, 10s Std Dev) | °/h≤20 |
| Bias Repeatability | °/h≤20 |
| Angular Random Walk | °/√h≤0.08 |
| Bias Instability (Allan Deviation) | °/h≤5 |
| Bandwidth (Amplitude) | Hz≥120 |
| Delay Time (within bandwidth) | ms√2.0 |
Package Information
Technical Drawings
