LTYS12CJ2B
Navigation / Quartz Mems / Gyroscope

LTYS12CJ2B

Dual-axis quartz MEMS gyroscope, high precision, high reliability, suitable for navigation, attitude measurement, and stabilization.

Power Supply Voltage

V 5 ± 0.2

Operating Current

mA 75 ± 5

Weight (excluding leads)

g 21 ± 2

Request Quote View Specifications

Product Gallery

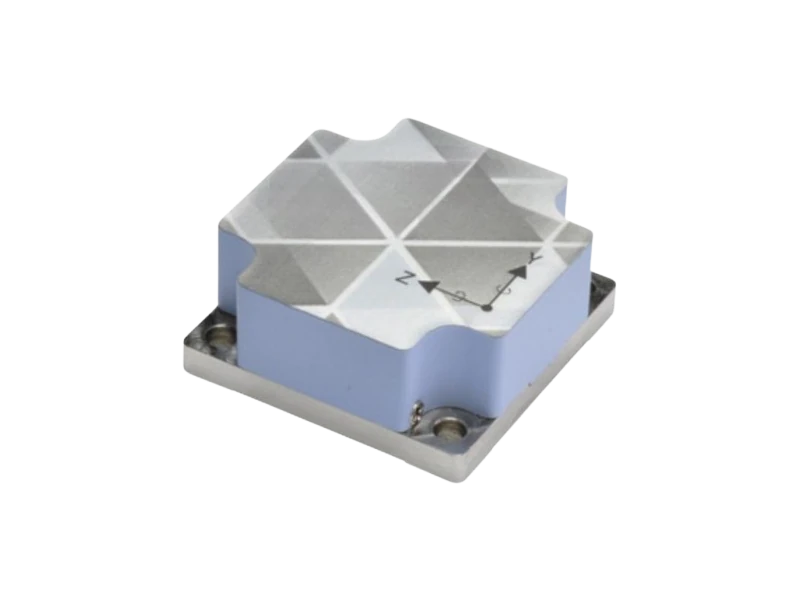

The LTYS12CJ2A is a dual-axis quartz MEMS gyroscope with high cost-effectiveness, precision, and reliability. It consists of circuits, housing, vibration isolation components, and quartz tuning fork sensing cores. It features built-in compensation algorithms and is capable of measuring angular velocity along two orthogonal axes. Applications include attitude measurement, optical image stabilization, and aerospace.

Key Features

  • Dual-axis quartz MEMS gyroscope
  • High precision and reliability
  • Built-in compensation algorithms
  • Wide measurement range
  • Compact and robust
  • Suitable for navigation and stabilization

Applications

Attitude measurementOptical image stabilizationAerospace and navigationIndustrial control

Technical Specifications

Performance Specifications

Power Supply Voltage

V

5 ± 0.2

Operating Current

mA

75 ± 5

Weight (excluding leads)

g

21 ± 2

Startup Time

s

≤1

Measurement Range

°/s

±400

Scale Factor

-

1 ± 0.005

Scale Factor Nonlinearity

ppm

≤100

Scale Factor Repeatability

ppm

≤200

Scale Factor Asymmetry

ppm

≤100

Cross-Axis Sensitivity

-

≤0.005

Threshold / Resolution

°/s

≤0.01

Bias (Full Temperature)

°/s

±0.03

Bias Stability (Room Temp, 10s Std Dev)

°/h

≤10

Bias Stability (Full Temp, 10s Std Dev)

°/h

≤30

Bias Repeatability

°/h

≤10

Angular Random Walk

°/√h

≤0.08

Bias Instability (Allan Deviation)

°/h

≤3

Bandwidth (Amplitude)

Hz

≥150

Delay Time (within bandwidth)

ms

√2.0

Performance Specifications

Power Supply Voltage

V

5 ± 0.2

Operating Current

mA

80 ± 5

Weight (excluding leads)

g

30 ± 5

Startup Time

s

≤3

Measurement Range

°/s

±200

Scale Factor

-

1 ± 0.005

Scale Factor Nonlinearity

ppm

≤200

Scale Factor Repeatability

ppm

≤300

Scale Factor Asymmetry

ppm

≤300

Cross-Axis Sensitivity

-

≤0.005

Threshold / Resolution

°/s

≤0.005

Bias (Full Temperature)

°/s

±0.03

Bias Stability (Room Temp, 10s Std Dev)

°/h

≤10

Bias Stability (Full Temp, 10s Std Dev)

°/h

≤20

Bias Repeatability

°/h

≤20

Angular Random Walk

°/√h

≤0.08

Bias Instability (Allan Deviation)

°/h

≤5

Bandwidth (Amplitude)

Hz

≥120

Delay Time (within bandwidth)

ms

√2.0

Package Information

Technical Drawings

Quartz MEMS Gyroscope LTYS12CJ2A
Dimensions Drawingdimensions
Quartz MEMS Gyroscope LTYS12CJ2B
Dimensions Drawingdimensions

Technical Documentation

picture_as_pdf

Datasheet (PDF)

Full performance curves, pinout diagrams, and environmental testing results.

Request Access
deployed_code

CAD Model (STEP)

High-fidelity 3D geometry for structural integration and thermal modeling.

Request Access
verified_user

Compliance Documentation

Certification of origin, quality management protocols, and compliance documentation.

Request Access

Request a Quote

All specifications can be customized. Tell us your requirements for a tailored solution.
