Single-Axis Digital Quartz MEMS Gyroscope Series (±400 °/s)
Quartz MEMS Gyroscope (Digital Output) · LTYS11CJ1A
Single-axis digital quartz MEMS gyroscope series in a sealed pin-output package, with a ±400 °/s standard range (options ±500, ±1800, others) and bias stability of ≤3 °/h at room temperature (10 s standard deviation). Bias instability ≤1.5 °/h (Allan deviation), bandwidth options 90–250 Hz, ≤2 s startup.
Power Supply Voltage
5 ± 0.2 V
Operating Current
30 ± 5 mA
Weight (excluding leads)
12 ± 2 g
Product Gallery

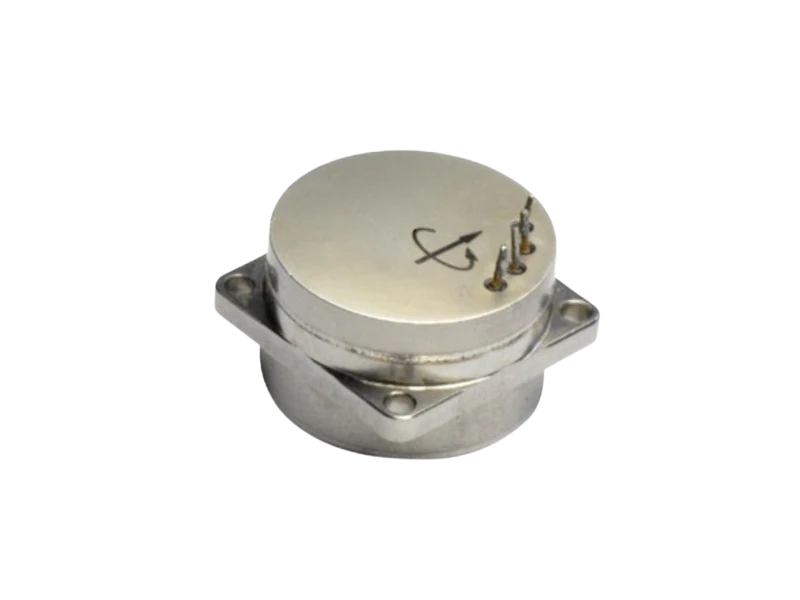

The LTYS11CJ10 is a single-axis quartz MEMS gyroscope with digital output, sealed pin output configuration. It features high reliability, fast response, wide dynamic range, low power consumption, strong shock resistance, and long service life. Suitable for attitude measurement, optical stabilization platforms, and aerospace.
Key Features
- Digital output
- Sealed pin output configuration
- High reliability and long service life
- Fast response and wide dynamic range
- Low power consumption and strong shock resistance
- Suitable for attitude measurement and stabilization
Applications
Technical Specifications
Performance Specifications
- Power Supply Voltage
- 5 ± 0.2 V
- Operating Current
- 30 ± 5 mA
- Weight (excluding leads)
- 12 ± 2 g
- Startup Time
- ≤2 s
- Measurement Range
- ±400 (options: ±500, ±1800, others) °/s
- Scale Factor
- - 1 ± 0.005
- Scale Factor Nonlinearity
- ≤100 ppm
- Scale Factor Repeatability
- ≤100 ppm
- Scale Factor Asymmetry
- ≤100 ppm
- Threshold / Resolution
- ≤0.01 °/s
- Bias (Full Temp)
- ±36 °/h
- Bias Stability (Room Temp, 10s Std Dev)
- ≤3 °/h
- Bias Stability (Full Temp, 10s Std Dev)
- ≤10 °/h
- Bias Repeatability
- ≤5 °/h
- Angular Random Walk
- ≤0.07 °/√h
- Bias Instability (Allan Deviation)
- ≤1.5 °/h
- Bandwidth (Amplitude)
- 150 (options: 90, 120, 200, 250) Hz
- Delay Time
- 2.0 (options: 2.6, 1.6, 1.3, 0.6) ms
Performance Specifications
- Power Supply Voltage
- 5 ± 0.2 V
- Operating Current
- 30 ± 5 mA
- Weight (excluding leads)
- 12 ± 2 g
- Startup Time
- ≤2 s
- Measurement Range
- ±400 (options: ±500, ±1800, others) °/s
- Scale Factor
- - 1 ± 0.005
- Scale Factor Nonlinearity
- ≤100 ppm
- Scale Factor Repeatability
- ≤100 ppm
- Scale Factor Asymmetry
- ≤100 ppm
- Threshold / Resolution
- ≤0.01 °/s
- Bias (Full Temp)
- ±36 °/h
- Bias Stability (Room Temp, 10s Std Dev)
- ≤3 °/h
- Bias Stability (Full Temp, 10s Std Dev)
- ≤10 °/h
- Bias Repeatability
- ≤5 °/h
- Angular Random Walk
- ≤0.07 °/√h
- Bias Instability (Allan Deviation)
- ≤1.5 °/h
- Bandwidth (Amplitude)
- 150 (options: 90, 120, 200, 250) Hz
- Delay Time
- 2.0 (options: 2.6, 1.6, 1.3, 0.6) ms
- [1]This series covers multiple package variants with identical performance specifications.
- [2]Bias stability figures are 10 s standard deviations at room temperature and over the full temperature range respectively.
- [3]Bandwidth options of 90/120/150/200/250 Hz are available; delay time varies with the selected bandwidth.
Package Information
Technical Drawings
Related Products
LTTB10CJ01
Power Supply Voltage
5 ± 0.2 V
Operating Current
≤10 mA
Weight
≤1.5 g
Outline Dimensions
13.6 × 8 × 2.8 mm
LTTB10CJ02
Power Supply Voltage
5 ± 0.2 V
Operating Current
≤10 mA
Weight
≤1.5 g
Outline Dimensions
10 × 10 × 2.95 mm
LTYS11CJ01
Power Supply Voltage
5 ± 0.2 V
Operating Current
≤25 mA
Weight (excluding leads)
≤25 g
Startup Time
≤2 s
