Miniature Quartz Flexure Accelerometer (±60 g, Ø18.2 mm)

Quartz Flexure Accelerometer · JDSJ18TK01

Miniaturized quartz flexure accelerometer in an Ø18.2 × 23 mm, ≤30 g package with a ±60 g range, 5 µg threshold, and bias repeatability down to ≤15 µg (1σ, 1 month) on the enhanced tier. 800–2500 Hz bandwidth, 150 g shock resistance, −55 °C to +85 °C operation.

General SpecificationsRange
±60g
Physical and Environmental SpecificationsBandwidth
800–2500 Hz
General SpecificationsThreshold
5 µg
Read full specifications and measurement conditions ↓
Request a quote View specifications

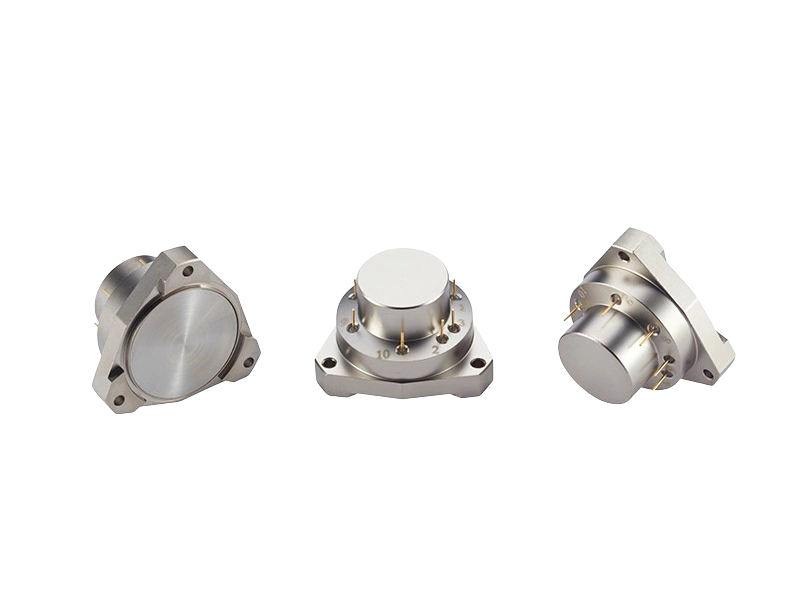

Miniature Quartz Flexure Accelerometer (±60 g, Ø18.2 mm)
JDSJ18TK01Product reference

Confirm configuration, interfaces and documentation with your inquiry.

The JDSJ18TK01 series quartz flexure accelerometer is a miniaturized, high-precision, large-range inertial navigation-grade accelerometer known for its excellent long-term stability, repeatability, startup performance, environmental adaptability, and high reliability. It is suitable for both static and dynamic testing and also functions as a standard vibration and tilt sensor. The product features a unique miniaturized design and packaging process, with output current linearly related to the applied force or acceleration. Users can calculate and select appropriate sampling resistors to achieve high-precision output. Additionally, a temperature sensor can be integrated upon user request to compensate for bias and scale factor, reducing the impact of environmental temperature variations.

Key Features

  • Miniaturized design (Ø18.2 × 23 mm)
  • Lightweight construction (≤30 g)
  • High measurement range (up to 100g in some models)
  • Exceptional long-term stability
  • Superior repeatability performance
  • Excellent startup characteristics
  • High environmental adaptability
  • Enhanced reliability design
  • Linear output current to acceleration relationship
  • Customizable sampling resistors
  • Optional integrated temperature sensor
  • High shock resistance (150g)
  • Improved random vibration resistance (10g)
  • Wide operating temperature range (-55°C to +85°C)

Applications

High-precision inertial navigation systemsAerospace applicationsAviation systemsMaritime navigationVibration isolation testingTilt testing applicationsPrecision instruments and equipmentApplications with space or weight constraints

Technical Specifications

General Specifications

Range
±60g
Threshold
5 µg
Bias K₀/K₁
≤±7 mg≤±5 mg
Scale Factor K₁
1.0 ± 0.2 mA/g
Second-Order Nonlinearity Coefficient K₂
≤±30 µg/g²≤±20 µg/g²
0g 4-Hour Short-Term Stability
≤20 µg≤10 µg
1g 4-Hour Short-Term Stability
≤20 ppm≤10 ppm

Performance Specifications

Bias Comprehensive Repeatability σK₀ (1σ, 1 month)
≤50 µg≤15 µg
Scale Factor Comprehensive Repeatability σK₁/K₁ (1σ, 1 month)
≤50 ppm≤15 ppm
Nonlinearity Coefficient Comprehensive Repeatability K₂/K₁ (1σ, 1 month)
≤±30 µg/g²≤±20 µg/g²
Bias Temperature Coefficient (Average over Full Temperature Range)
≤±50 µg/°C≤±15 µg/°C
Scale Factor Temperature Coefficient (Average over Full Temperature Range)
≤±80 ppm/°C≤±15 ppm/°C
Noise (Sampling Resistor at 840 Ω)
≤8.4 mV≤5 mV

Physical and Environmental Specifications

Natural Frequency
350–800 Hz
Bandwidth
800–2500 Hz
Random Vibration
10g (20–2000 Hz)
Shock
150g, 4.5 ms, 1/2 sin
Operating Temperature Range
-55°C to +85°C
Storage Temperature Range
-60°C to +120°C
Dimensions
Ø18.2 × 23 mm
Weight
≤30 g

Electrical Specifications (Common to All Models)

Power Supply
±12 to ±15 V
Power Consumption
≤±20 mA
Temperature Sensor
Customizable (AD590, PT1000, 18B20)
Pin Configuration
10-pin standard (customizable)
  1. [1]Two performance tiers are offered; where two figures are shown for one parameter they correspond to the standard and enhanced tiers — confirm tier at inquiry.
  2. [2]Repeatability figures are 1σ values over a 1-month composite test; test intervals can be customized (1, 3, 6, or 12 months).

Package Information

Technical Drawings

Square Flange Dimensions
Dimensions Drawingdimensions
Triangular Flange Dimensions
Dimensions Drawingdimensions

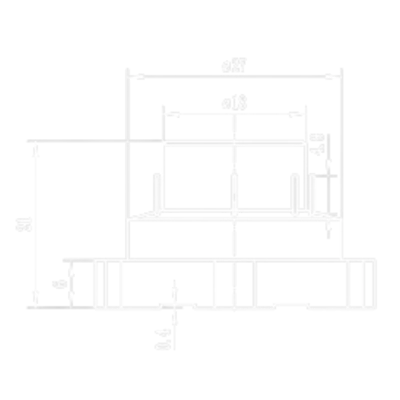

Inverted Triangular Flange Dimensions
Dimensions Drawingdimensions

Technical Notes

  1. Testing intervals can be customized based on user needs, such as 1 month, 3 months, 6 months, or 12 months
  2. Outline dimensions can be slightly adjusted according to user installation requirements
