JDWZZ3411
High-performance dual-axis MEMS gyroscope with ±300°/s measurement range, featuring superior zero bias stability (≤1°/h) and excellent scale factor characteristics
Measurement Range
°/s ±300
Zero Bias
°/s ±0.05
Zero Bias Stability (10s)
°/h ≤1

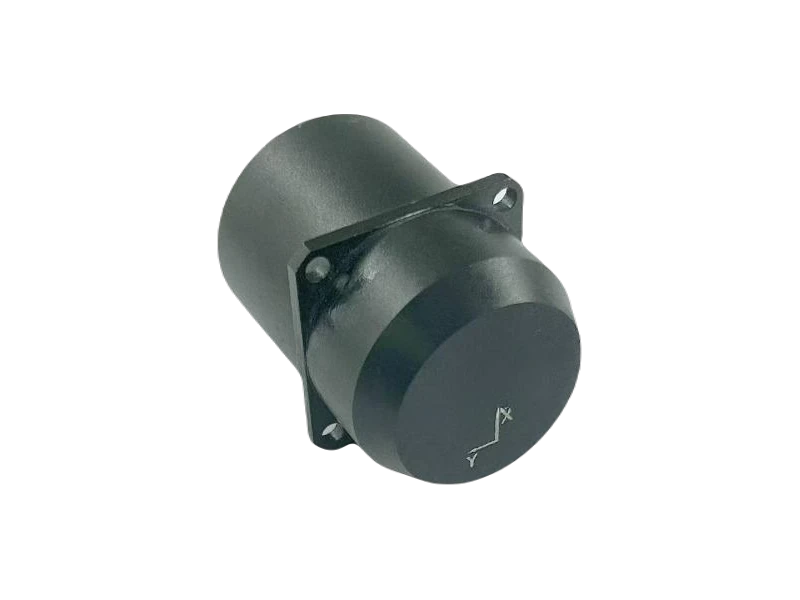

Product Gallery
The JDWZZ3411 is a high-precision dual-axis MEMS gyroscope engineered for applications requiring accurate angular rate measurements. With a measurement range of ±300°/s and bandwidth up to 100Hz, it delivers exceptional performance with superior zero bias stability (≤1°/h) and excellent scale factor characteristics (nonlinearity ≤300ppm). The device features precise X/Y orthogonality (≤0.5%) and outstanding temperature stability with low zero bias and scale factor temperature coefficients (≤1°/h/°C and ≤100ppm respectively), making it ideal for demanding dual-axis motion sensing applications.
Key Features
- Dual-axis angular rate measurement
- Precise measurement range of ±300°/s on both axes
- High-precision X/Y orthogonality (≤0.5%)
- Superior zero bias stability (≤1°/h)
- Excellent zero bias repeatability (≤5°/h)
- Low zero bias temperature coefficient (≤1°/h/°C)
- High scale factor precision (20000LSB/°/s)
- Excellent scale factor repeatability (≤300ppm)
- Superior scale factor nonlinearity (≤300ppm)
- Low scale factor temperature coefficient (≤100ppm)
- Wide bandwidth up to 100Hz
- Wide operating temperature range (-40°C to 85°C)
- Low power consumption (≤100mA)
Applications
Technical Specifications
Performance Specifications
Measurement Range
°/s
±300Zero Bias
°/s
±0.05Zero Bias Stability (10s)
°/h
≤1Zero Bias Repeatability
°/h
≤5Zero Bias Temperature Coefficient
°/h/°C
≤1Scale Factor
LSB/°/s
20000Scale Factor Repeatability
ppm
≤300Scale Factor Nonlinearity
ppm
≤300Scale Factor Temperature Coefficient
ppm
≤100X/Y Orthogonality
%
≤0.5Bandwidth
Hz
≤100Power Supply Voltage
V
5±0.25Current
mA
≤100Operating Temperature
°C
-40~85
