Single-Axis MEMS Gyroscope Series (±400–±500 °/s)
MEMS Gyroscope · JDWDG083
Single-axis MEMS gyroscope family with measurement ranges of ±400 °/s and ±500 °/s across five variants, bandwidth from 95 Hz to 250 Hz, and zero bias stability down to ≤1 °/h. 5 V supply at ≤55 mA, −40 °C to +85 °C operation, and overload resistance up to 20,000 g.
Measurement Range
±500 °/s
Bandwidth
95 Hz
Scale Factor Nonlinearity
≤500 ppm

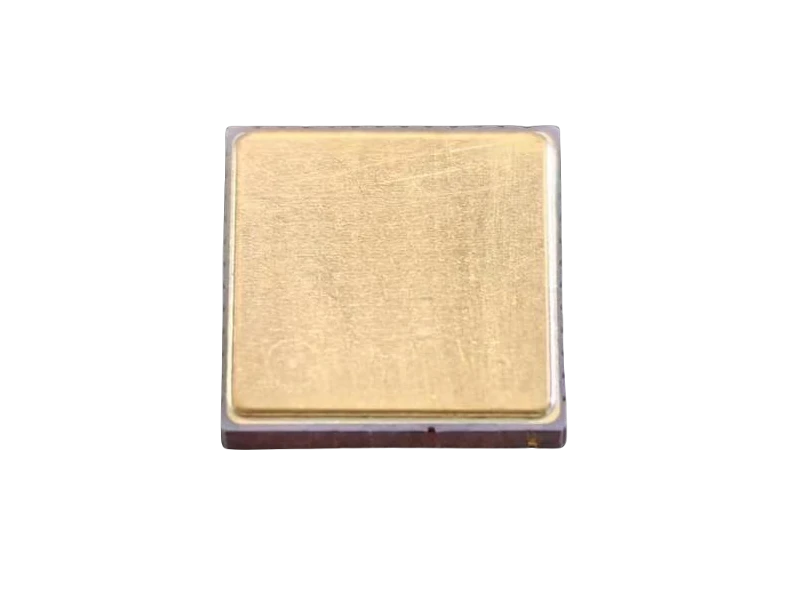

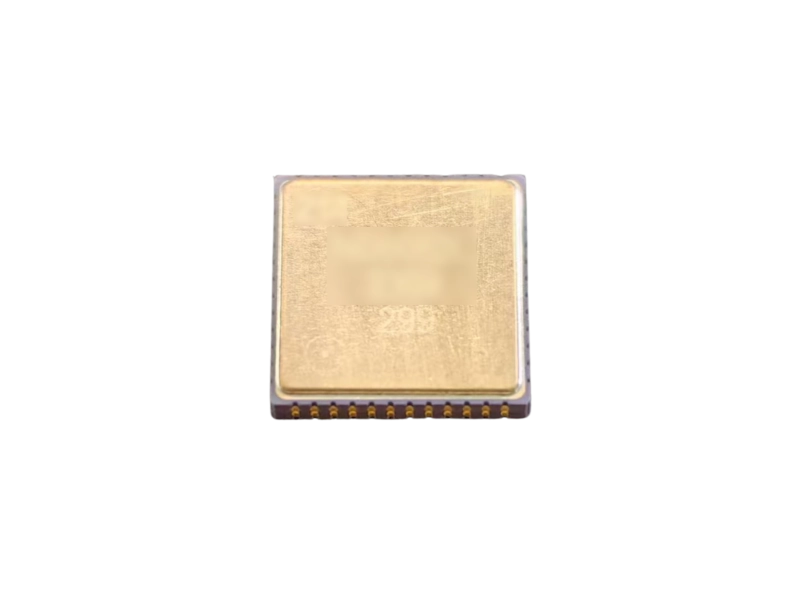

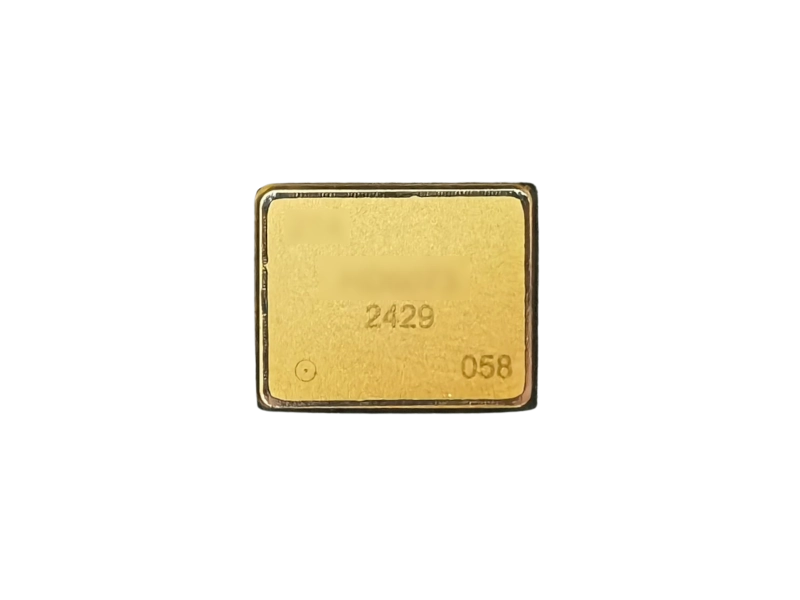

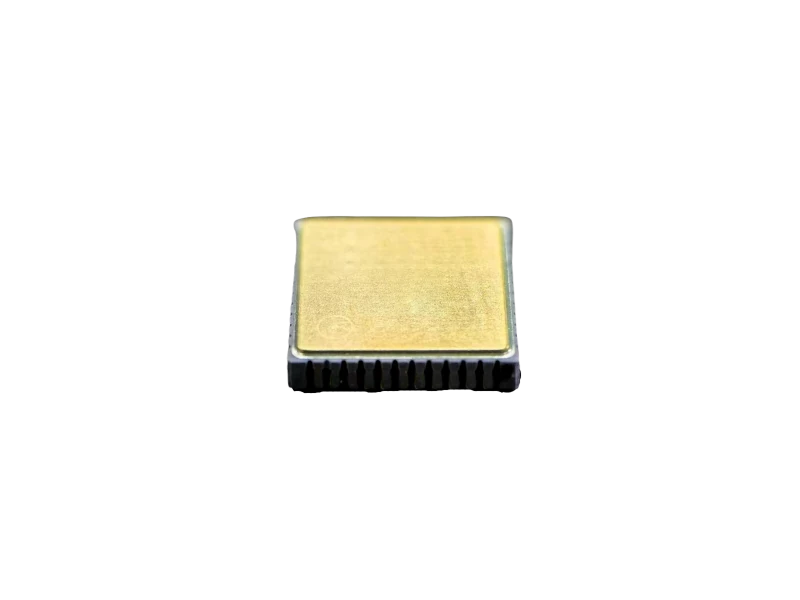

Product Gallery
The JDWDG073 is a MEMS gyroscope featuring a measurement range of ±500°/s and 95Hz bandwidth. It demonstrates robust scale factor stability with nonlinearity ≤500ppm and excellent zero bias stability ≤10°/h, making it suitable for motion control and industrial applications. The device incorporates a compact design with high overload resistance (≥10000g), ensuring reliable operation in harsh environments.
Key Features
- Wide measurement range of ±500°/s
- 95Hz bandwidth for dynamic response
- Scale factor nonlinearity ≤500ppm
- Scale factor repeatability ≤800ppm
- Scale factor temperature coefficient ≤500ppm/°C
- Zero bias stability ≤10°/h
- Zero bias repeatability ≤10°/h
- High overload resistance (≥10000g)
- Wide operating temperature range (-40°C to 85°C)
- Low power consumption (≤55mA)
Applications
Technical Specifications
Performance Specifications
- Measurement Range
- ±500 °/s
- Bandwidth
- 95 Hz
- Scale Factor Nonlinearity
- ≤500 ppm
- Scale Factor Repeatability
- ≤800 ppm
- Scale Factor Temperature Coefficient
- ≤500 ppm/°C
- Zero Bias Stability (1σ)
- ≤10 °/h
- Zero Bias Repeatability (1σ)
- ≤10 °/h
- Resistant To Overload (Notenergized)
- ≥10000 g
- Operating Temperature
- -40~85 °C
- Dimensions
- 13.97×11.43×3.3 mm³
- Power Supply Voltage
- 5±0.1 V
- Current
- ≤55 mA
Performance Specifications
- Measurement Range
- ±400 °/s
- Bandwidth
- 100 Hz
- Scale Factor Nonlinearity
- ≤100 ppm
- Scale Factor Repeatability
- ≤50 ppm
- Scale Factor Temperature Coefficient
- ≤300 ppm/°C
- Zero Bias Stability (1σ)
- ≤1 °/h
- Zero Bias Repeatability (1σ)
- ≤0.3 °/h
- Operating Temperature
- -40~85 °C
- Dimensions
- 11×11×1.8 mm³
- Power Supply Voltage
- 5±0.1 V
- Current
- ≤45 mA
Performance Specifications
- Measurement Range
- ±500 °/s
- Bandwidth
- 200 Hz
- Scale Factor Nonlinearity
- ≤300 ppm
- Scale Factor Repeatability
- ≤50 ppm
- Scale Factor Temperature Coefficient
- ≤300 ppm/°C
- Zero Bias Stability (1σ)
- ≤5 °/h
- Zero Bias Repeatability (1σ)
- ≤2 °/h
- Vibratory
- 6.08 grms
- Resistant To Overload (Notenergized)
- ≥20000 g
- Operating Temperature
- -40~85 °C
- Dimensions
- 11×11×1.8 mm³
- Power Supply Voltage
- 5±0.1 V
- Current
- ≤45 mA
Performance Specifications
- Measurement Range
- ±500 °/s
- Bandwidth
- 200 Hz
- Scale Factor Nonlinearity
- ≤300 ppm
- Scale Factor Repeatability
- ≤50 ppm
- Scale Factor Temperature Coefficient
- ≤300 ppm/°C
- Zero Bias Stability (1σ)
- ≤5 °/h
- Zero Bias Repeatability (1σ)
- ≤2 °/h
- Resistant To Overload (Notenergized)
- ≥20000 g
- Operating Temperature
- -40~85 °C
- Dimensions
- 11×11×1.8 mm³
- Power Supply Voltage
- 5±0.1 V
- Current
- ≤45 mA
Performance Specifications
- Measurement Range
- ±400 °/s
- Bandwidth
- 250 Hz
- Scale Factor Nonlinearity
- ≤100 ppm
- Scale Factor Repeatability
- ≤30 ppm
- Scale Factor Temperature Coefficient
- ≤100 ppm/°C
- Zero Bias Stability (1σ)
- ≤1 °/h
- Zero Bias Repeatability (1σ)
- ≤0.3 °/h
- Operating Temperature
- -40~85 °C
- Dimensions
- 11×11×1.8 mm³
- Power Supply Voltage
- 5±0.1 V
- Current
- ≤45 mA
- [1]This series covers multiple variants (one specification block per variant); figures differ by variant — confirm the exact variant at inquiry.
- [2]Zero bias stability and zero bias repeatability figures are 1σ values.
