Digital MEMS Accelerometer Series (±10–±50 g, SPI)

MEMS Accelerometer (Digital SPI) · JDWDG072C

SPI-output MEMS accelerometer family with ±10 g, ±30 g, and ±50 g measurement ranges, 200 Hz bandwidth, and zero bias stability down to ≤0.3 mg. Compact LCC32 package with 10,000 g overload resistance and ≤30 mA current over −40 °C to +85 °C.

Performance SpecificationsMeasurement Range
±30±10
Performance SpecificationsMeasurement Range
±30±10
Performance SpecificationsZero Bias Stability
≤0.3
Read full specifications and measurement conditions ↓
Request a quote View specifications
Digital MEMS Accelerometer Series (±10–±50 g, SPI)
JDWDG072CProduct reference

Confirm configuration, interfaces and documentation with your inquiry.

The JDWDG072B is a high-performance MEMS accelerometer designed for precise Z-axis acceleration measurements. Available in three measurement ranges (±10g, ±30g, ±50g), it delivers exceptional stability and reliability for demanding applications. The device features superior zero bias stability down to ≤0.3mg and excellent repeatability of ≤0.5mg, making it ideal for high-precision motion sensing and industrial monitoring. With its SPI interface and robust LCC32 packaging, it offers seamless integration into various measurement and control systems while maintaining high accuracy and reliability.

Key Features

  • Multiple measurement ranges: ±10g, ±30g, and ±50g
  • High bandwidth of 200Hz
  • Superior zero bias stability (≤0.3mg for ±10g/±30g, ≤0.5mg for ±50g)
  • Excellent zero bias repeatability (≤0.5mg for ±10g/±30g, ≤1mg for ±50g)
  • Low temperature coefficient (≤0.3mg/°C for ±10g/±30g, ≤0.5mg/°C for ±50g)
  • Digital SPI interface

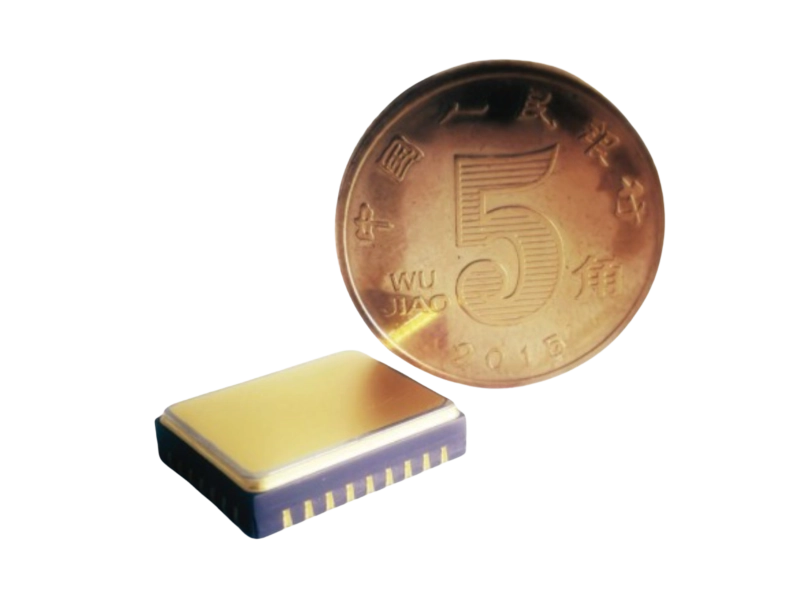

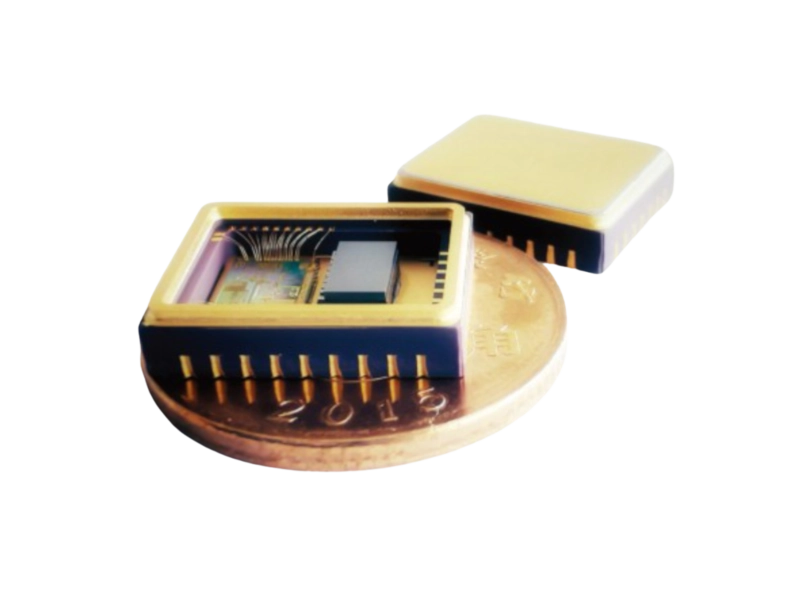

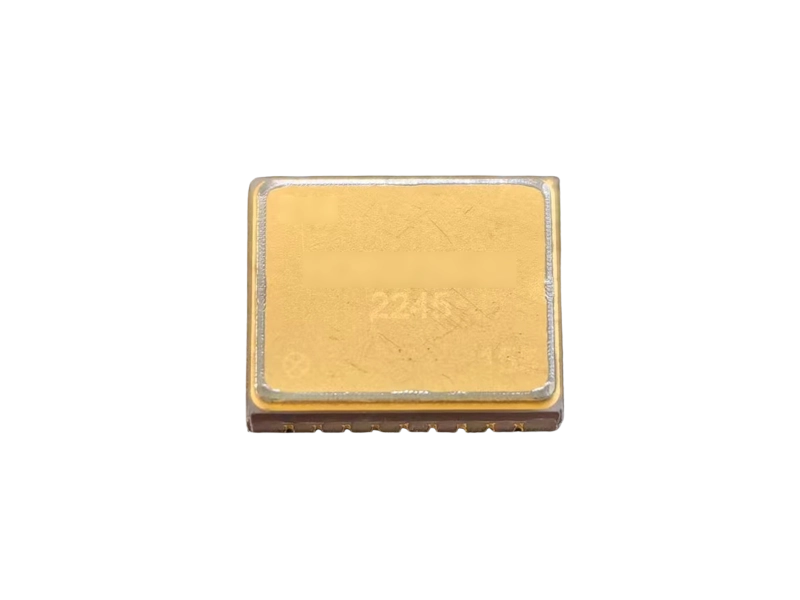

  • Compact LCC32 packaging
  • High overload resistance (≥10000g)
  • Wide operating temperature range (-40°C to 85°C)
  • Low power consumption (≤30mA)

Applications

Industrial vibration monitoringStructural health monitoringPlatform stabilization systemsPrecision motion controlSeismic monitoringNavigation and guidance systemsImpact and shock detectionTest and measurement equipmentIndustrial automationResearch and development instrumentation

Technical Specifications

Performance Specifications

Measurement Range
±30±10
Bandwidth
200
Zero Bias Stability
≤0.3
Zero Bias Repeatability
≤0.5
Zero Bias Temperature Coefficient
≤0.3
Scale Factor Repeatability
≤100
Scale Factor Nonlinearity
≤2000
Output Form
SPI
Packaging Form
LCC32
Axial Direction
Z - Axis
Dimensions
13.97×11.43×3.3
Overload Resistance
≥10000
Operating Temperature
-40~85
Power Supply Voltage
5±0.1
Current
≤30

Performance Specifications

Measurement Range
±30±10
Bandwidth
200
Zero Bias Stability
≤0.5≤0.3
Zero Bias Repeatability
≤1≤0.5
Zero Bias Temperature Coefficient
≤0.5≤0.1
Scale Factor Repeatability
≤300≤100
Scale Factor Nonlinearity
≤300≤200
Output Form
SPI
Packaging Form
LCC32
Axial Direction
X - Axis
Dimensions
13.97×11.43×3.3
Overload Resistance
≥10000
Operating Temperature
-40~85
Power Supply Voltage
5±0.1
Current
≤30
  1. [1]This series covers multiple variants; where two figures are shown for one parameter they correspond to different variants — confirm the exact variant at inquiry.

Frequently Asked Questions

What is JDWDG072C?+

SPI-output MEMS accelerometer family with ±10 g, ±30 g, and ±50 g measurement ranges, 200 Hz bandwidth, and zero bias stability down to ≤0.3 mg. Compact LCC32 package with 10,000 g overload resistance and ≤30 mA current over −40 °C to +85 °C.

Which specifications are published for JDWDG072C?+

Performance Specifications — Bandwidth: 200; Performance Specifications — Zero Bias Stability: ≤0.3; Performance Specifications — Zero Bias Repeatability: ≤0.5. Measurement conditions: This series covers multiple variants; where two figures are shown for one parameter they correspond to different variants — confirm the exact variant at inquiry. See the technical specifications for the complete parameter list.
