JDWDG070

High-performance analog MEMS accelerometers with multiple measurement ranges, offering superior stability and reliability for precision sensing applications

Measurement Range

±20 ±10

Bandwidth

200 200

Zero Bias Stability (1σ)

≤1 ≤0.5

Request Quote View Specifications

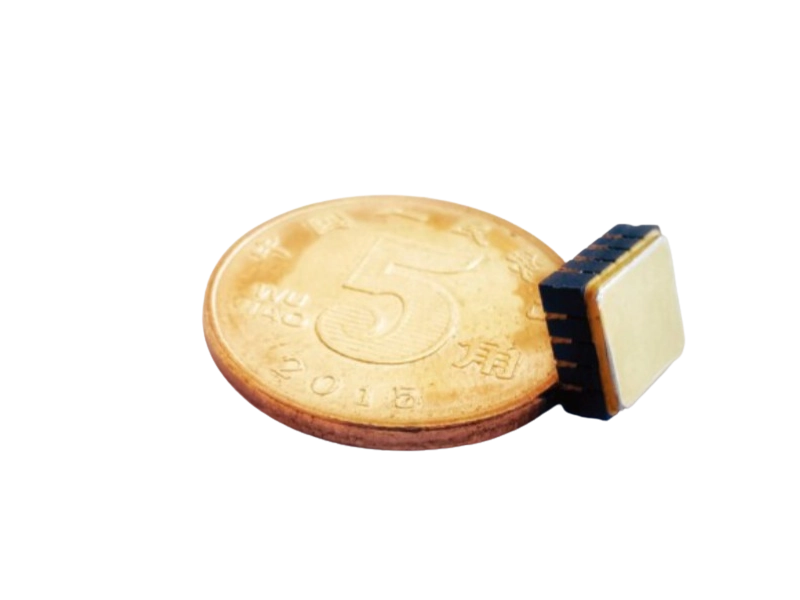

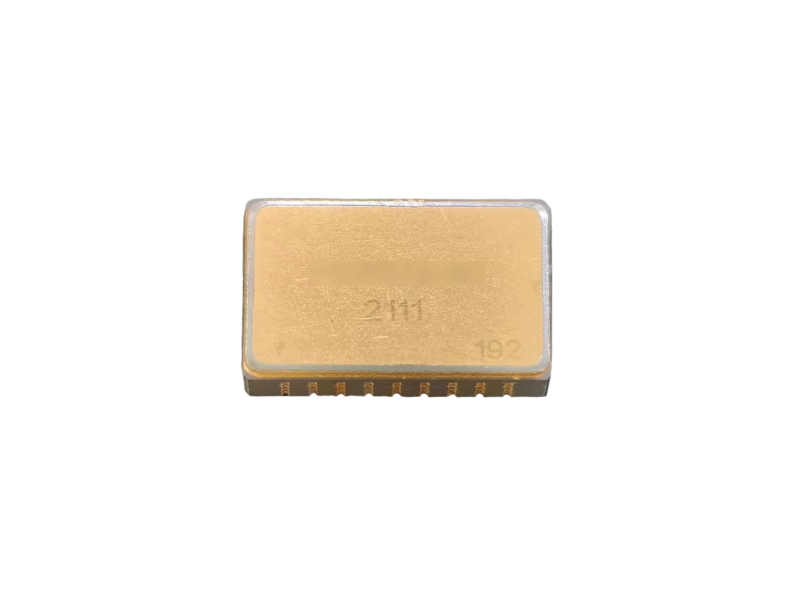

Product Gallery

The JDWDG068 is a high-performance analog MEMS accelerometer engineered for precision sensing applications requiring exceptional stability and reliability. It supports four selectable measurement ranges (±10g, ±20g, ±30g, ±50g) and features excellent zero bias stability down to ≤0.5 mg. With high repeatability, low noise, and robust temperature performance, this accelerometer is well-suited for use in aerospace, industrial control, and structural monitoring systems. The device’s analog output and compact LCC28 package ensure ease of integration into a wide range of analog signal acquisition environments.

Key Features

  • Multiple measurement ranges from ±10g to ±50g
  • High bandwidth of 200Hz across all ranges
  • Excellent zero bias stability and repeatability
  • Low temperature coefficient for stable operation
  • Analog output with 0.5V-4.5V range
  • Compact LCC28 packaging
  • High overload rating of ≥10000g
  • Wide operating temperature range (-40°C to 85°C)
  • Low power consumption with ≤10mA operating current

Applications

Industrial vibration monitoringStructural health monitoringSeismic monitoringTransportation and vehicle dynamicsPlatform stabilizationMotion and shock detectionInertial measurement systemsTest and measurement equipment

Technical Specifications

Performance Specifications

Measurement Range

±20

±10

Bandwidth

200

200

Zero Bias Stability (1σ)

≤1

≤0.5

Zero Bias Repeatability (1σ)

≤2

≤0.5

Zero Bias Temperature Coefficient

≤2

≤1

Scale Factor Repeatability

≤300

≤300

Scale Factor Nonlinearity

≤3000

≤3000

Output Type

Analog(0.5V-4.5V)

Analog(0.5V-4.5V)

Packaging Type

LCC28

LCC28

Measurement Axis

Z - Axis

Z - Axis

Package Dimensions

14×8.9×3.2

14×8.9×3.2

Overload Rating

≥10000

≥10000

Operating Temperature Range

-40~85

-40~85

Supply Voltage

5±0.1

5±0.1

Operating Current

≤10

≤10

Performance Specifications

Measurement Range

±30

±10

Bandwidth

200

200

Zero Bias Stability (1σ)

≤1

≤1

Zero Bias Repeatability (1σ)

≤1

≤0.5

Zero Bias Temperature Coefficient

≤1

≤1

Scale Factor Repeatability

≤300

≤300

Scale Factor Nonlinearity

≤3000

≤2000

Output Type

Analog(0.5V-4.5V)

Analog(0.5V-4.5V)

Packaging Type

LCC28

LCC28

Measurement Axis

X - Axis

X - Axis

Package Dimensions

14×8.9×3.2

14×8.9×3.2

Overload Rating

≥10000

≥10000

Operating Temperature Range

-40~85

-40~85

Supply Voltage

5±0.1

5±0.1

Operating Current

≤10

≤10
