Asset ID: gyro-theodolite-standard-ywj01zb
YWJ01ZB150
Navigation / Gyro Theodolite

YWJ01ZB150

Professional gyro theodolite series offering reliable azimuth determination and precise angle measurement for various surveying applications

Azimuth Accuracy

≤2.5 arcsec

Measurement Time

≤14 min

Main Unit Weight

≤14 kg

Request Quote View Specifications

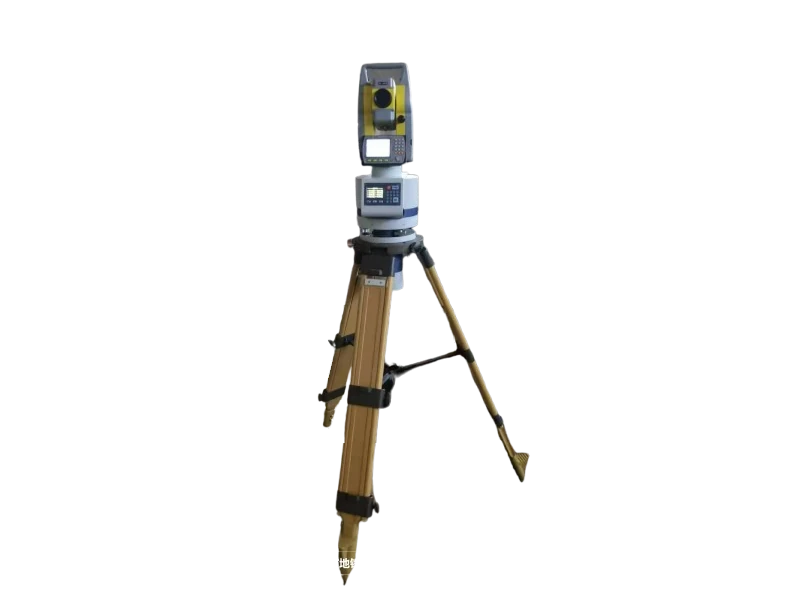

Product Gallery

The reference-grade gyro theodolite (ZB01) represents our commitment to precision in azimuth determination and angle measurement. Built with advanced gyroscopic technology and digital angle reading system, it delivers reliable performance for professional surveying and alignment applications.

Key Features

  • Azimuth accuracy: ±25 arc seconds
  • Horizontal angle accuracy: 1 arc second
  • Vertical angle accuracy: 1 arc second
  • Display resolution: 0.1 arc second
  • North seeking time: 15 minutes
  • Operating temperature: -20°C to +50°C
  • Storage temperature: -40°C to +70°C
  • Water/Dust protection: IP66
  • Weight: 7.5 kg
  • Battery life: 12 hours
  • Digital angle reading system
  • Automatic compensation
  • High-resolution LCD display
  • Illuminated reticle
  • Internal data storage
  • USB data transfer

Applications

Underground tunnel alignmentConstruction site surveyingMining industry measurementsPipeline installationInfrastructure monitoringGeneral surveying tasks

Technical Specifications

Measurement Parameters

Azimuth Accuracy

≤2.5

arcsec

Measurement Time

≤14

min

Main Unit Weight

≤14

kg

Data Storage

100

groups

Operation Parameters

Operation Mode

One-key Full Auto

Operation Safety

Anti-shock, Anti-static, Anti-interference

Measurement Process

Self-checking

Display

Digital Display

Result Output

Auto Storage and Output

Measurement Parameters

Azimuth Accuracy

≤7

arcsec

Measurement Time

≤9

min

Main Unit Weight

≤12

kg

Data Storage

100

groups

Operation Parameters

Operation Mode

One-key Full Auto

Operation Safety

Anti-shock, Anti-static, Anti-interference

Measurement Process

Self-checking

Display

Digital Display

Result Output

Auto Storage and Output

Measurement Parameters

Azimuth Accuracy

≤15

arcsec

Measurement Time

≤8

min

Main Unit Weight

≤11

kg

Data Storage

100

groups

Operation Parameters

Operation Mode

One-key Full Auto

Operation Safety

Anti-shock, Anti-static, Anti-interference

Measurement Process

Self-checking

Display

Digital Display

Result Output

Auto Storage and Output

Accessories

Standard Accessories

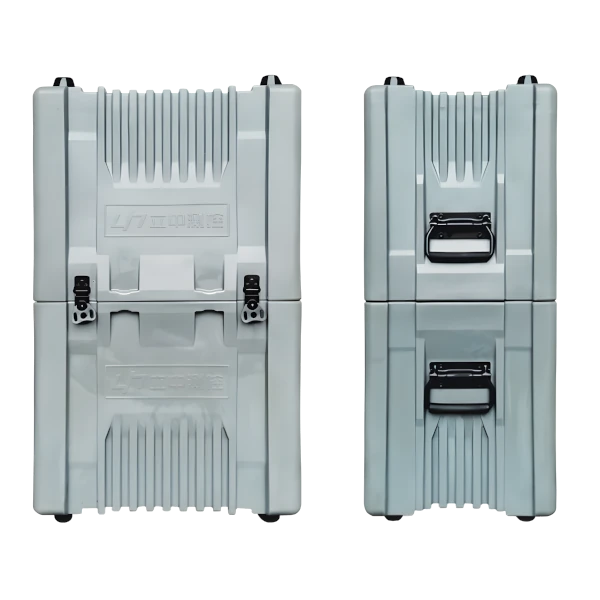

High-quality PE molded case with custom foam inserts
Custom PE Molded Case

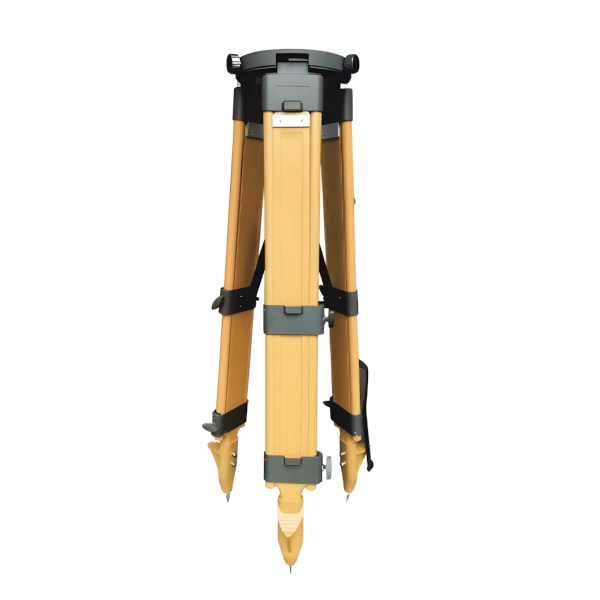

Professional-grade dedicated tripod for stable mounting
Dedicated Tripod

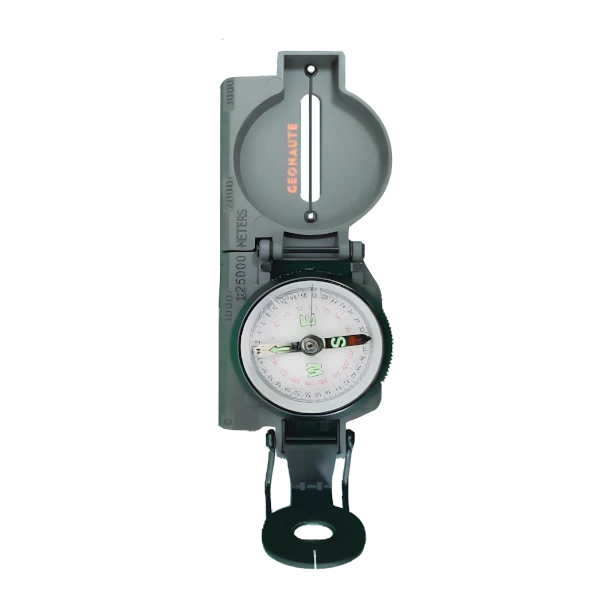

Precision compass and clinometer for initial alignment
Compass and Clinometer
Comprehensive technical documentation and user guides
Technical Documents

Optional Accessories

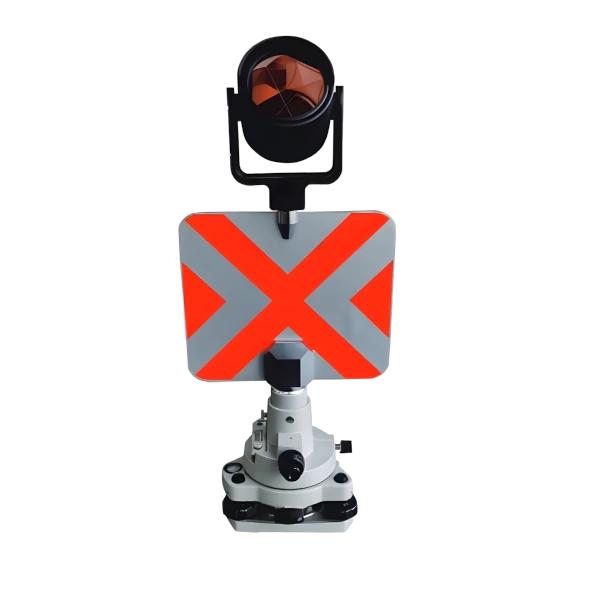

All-weather illuminated target for low-light conditions
All-weather Illuminated Target

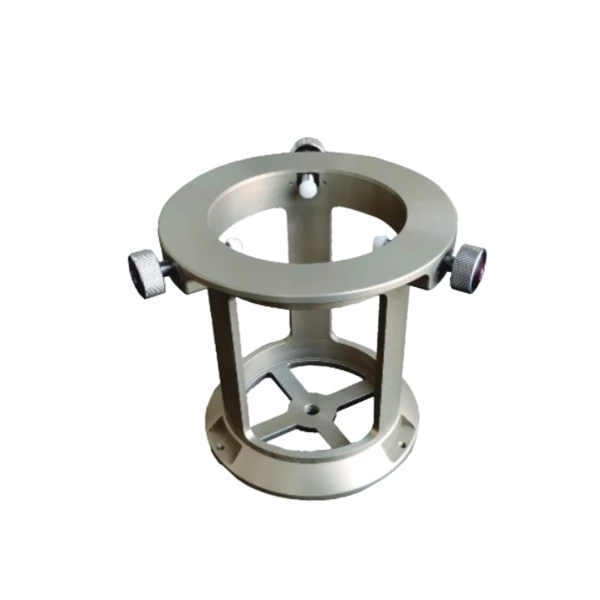

Precision forced centering base for accurate positioning
Forced Centering Base

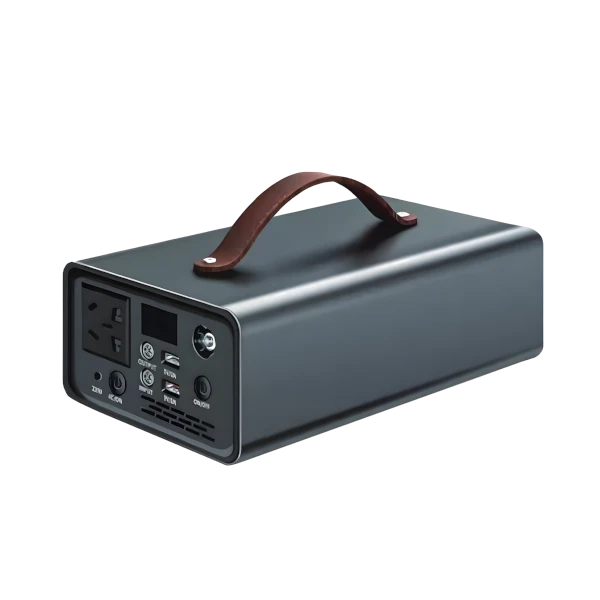

Extended-life backup power supply unit
Backup Power Supply

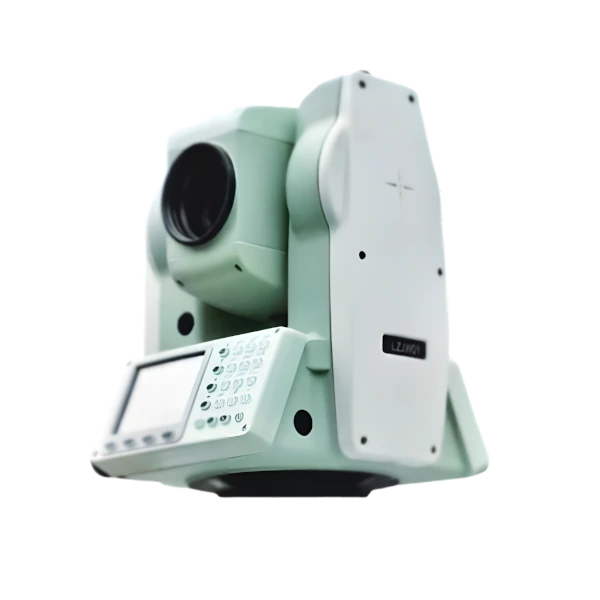

Auto-collimating theodolite for enhanced accuracy
Auto-collimating Theodolite
Professional third-party calibration certification
Third-party Calibration Certificate
