D-Q-TQG-DBY02
DBY021550M

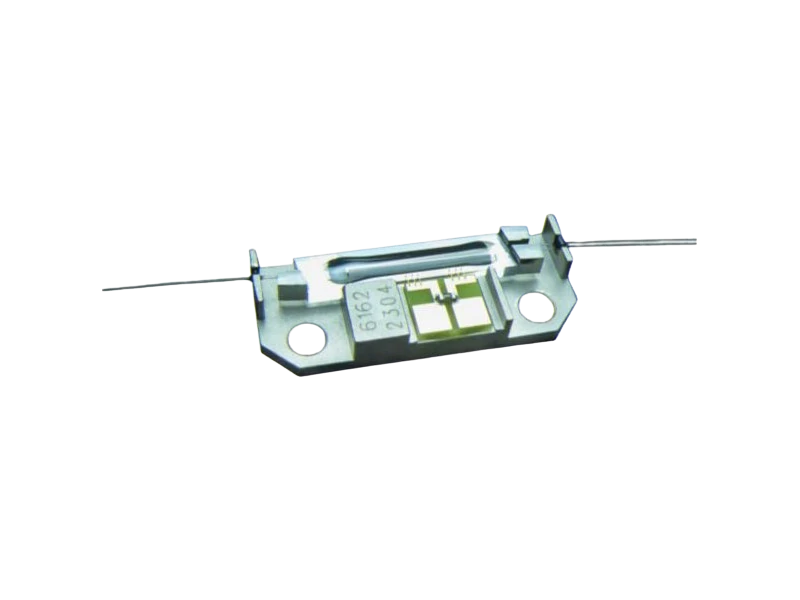

A mini lithium niobate optical chip designed for compact systems, integrating essential components while ensuring high performance and reliability
Customizable Parameters
Specifications shown are reference configurations. Most parameters can be adjusted to meet your application requirements.

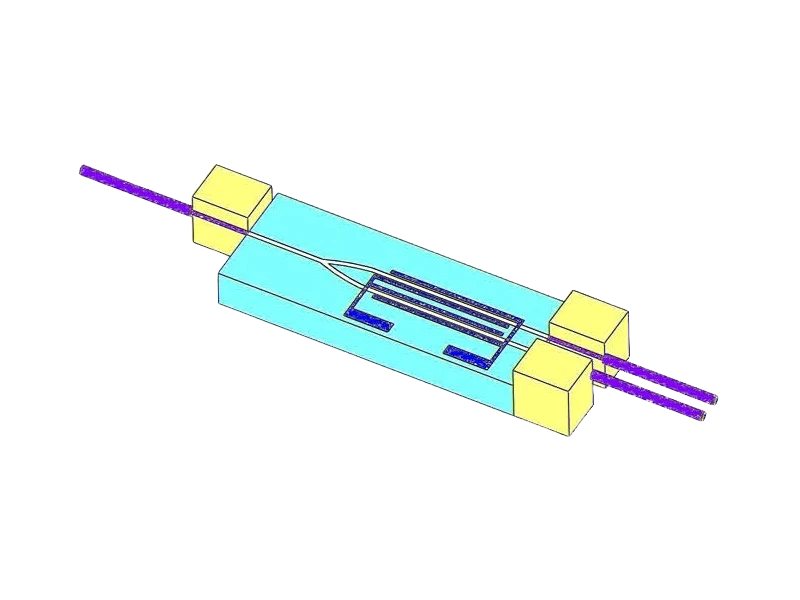

The mini lithium niobate multi-functional integrated optical chip (MIOC) is designed to minimize the size of miniaturized systems while maintaining high performance and reliability. It integrates several functional units on a single chip, including a polarizer, splitter, combiner, and phase modulator.
Key Features
- Miniaturized design for compact systems
- Low insertion loss (≤3.5 dB)
- High polarization extinction ratio (≥55 dB)
- Multi-wavelength support (830/1310/1550 nm)
- Push-pull electrode modulation
- Excellent environmental stability
Applications
Fiber optic gyroscopes (FOG)Fiber optic current sensor(FOCS)Hydrophone
Specifications
Optical Specification
| Operating Wavelength | 830±20nm |
| Insertion Loss | ≤3.5dB |
| Maximum Optical Input Power | 10mW |
| Split Ratio | 48/52~52/48 |
| Pigtail Polarization Crosstalk | ≤-30dB |
| Polarization Extinction Ratio-chip | ≥55dB |
| Optical Return Loss | ≤-60dB |
| Additional Intensity Modulating | ≤0.1% |
Electrical Specification
| Half Wave Voltage | ≤3.0V |
| Maximum Voltage on DC Input | ±15V |
| Electrode Type | Push-pull modulating |
| Operating Frequency | DC-300MHz |
| Electrical Connector | Gold pads or 3 Pins |
Mechanical Specification
| Pigtail Type | PM or SM Fiber |
| Pigtail Diameter | 60/100, 80/165 or 125/250μm |
Environmental Specification
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+85°C |
Optical Specification
| Operating Wavelength | 1310±25nm |
| Insertion Loss | ≤3.5dB |
| Maximum Optical Input Power | 200mW |
| Split Ratio | 48/52~52/48 |
| Pigtail Polarization Crosstalk | ≤-30dB |
| Polarization Extinction Ratio-chip | ≥55dB |
| Optical Return Loss | ≤-60dB |
| Additional Intensity Modulating | ≤0.1% |
Electrical Specification
| Half Wave Voltage | ≤4.0V |
| Maximum Voltage on DC Input | ±15V |
| Electrode Type | Push-pull modulating |
| Operating Frequency | DC-300MHz |
| Electrical Connector | Gold pads or 3 Pins |
Mechanical Specification
| Pigtail Type | PM or SM Fiber |
| Pigtail Diameter | 60/100, 80/165 or 125/250μm |
Environmental Specification
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+85°C |
Optical Specification
| Operating Wavelength | 1550±25nm |
| Insertion Loss | ≤3.5dB |
| Maximum Optical Input Power | 200mW |
| Split Ratio | 48/52~52/48 |
| Pigtail Polarization Crosstalk | ≤-30dB |
| Polarization Extinction Ratio-chip | ≥55dB |
| Optical Return Loss | ≤-60dB |
| Additional Intensity Modulating | ≤0.1% |
Electrical Specification
| Half Wave Voltage | ≤4.0V |
| Maximum Voltage on DC Input | ±15V |
| Electrode Type | Push-pull modulating |
| Operating Frequency | DC-300MHz |
| Electrical Connector | Gold pads or 3 Pins |
Mechanical Specification
| Pigtail Type | PM or SM Fiber |
| Pigtail Diameter | 60/100, 80/165 or 125/250μm |
Environmental Specification
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+85°C |
Package Information
Technical Drawings
Request a Quote
All specifications can be customized. Tell us your requirements for a tailored solution.
