D-Q-TQG-YGFZ15GB
YGFZ15GBP50
Advanced ASE light source offering multiple spectral profiles for fiber optic gyroscope applications

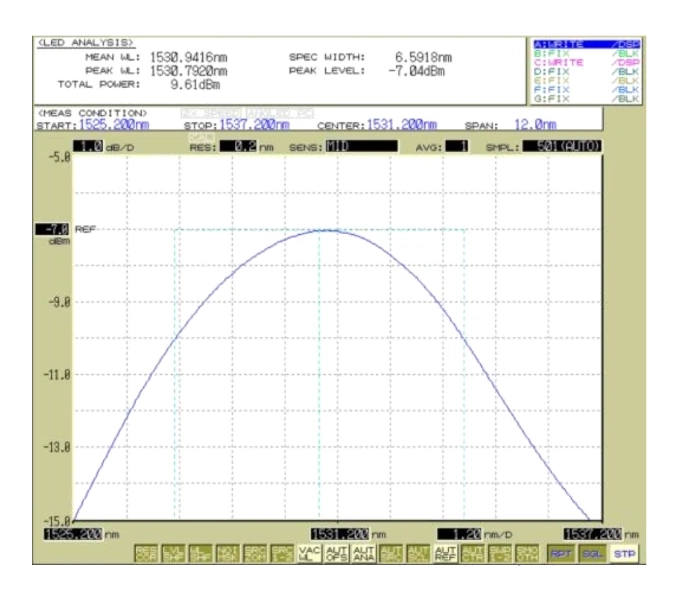

The YGFZ15GBG30 is a high-performance ASE light source featuring a Gaussian spectral profile centered at 1530nm. It is specifically designed for fiber optic gyroscope applications requiring precise wavelength control and excellent stability.
Key Features
- Gaussian spectral profile
- High power stability
- Low noise performance
- Excellent temperature characteristics
- Built-in optical isolation
- Compact design
- Multiple package options
Applications
Fiber optic gyroscopes (FOG)Optical sensing systemsTest and measurement equipment
Specifications
Optical Specification
| Center Wavelength | 1530nm |
| Output Power | ≤50mW |
| Spectral Width | 7nm |
| Power Stability @25°C | 1% |
| Power Stability @Full Temperature | 5% |
| Wavelength Stability @25°C | 5ppm |
| Wavelength Stability @Full Temperature | 20ppm |
| Spectral Modulation | 0.03dB |
| Polarization Extinction Ratio | 0.2dB |
Electrical Specification
| Supply Voltage | DC +5V/GNDV |
| Power Consumption @25°C | ≤1.5W |
| Power Consumption @Full Temperature | ≤4.0W |
Package Options
| Package A | Compact sizeΦ45 mm |
| Package B | Standard sizeΦ60 mm |
| Package C | Enhanced coolingΦ98 mm |
| Package D | Rack mount90 × 70 × 15 mm |
Fiber Options
| Standard | 80/170 μm SM |
| Optional | 125/250 μm SM |
| Jumper | SMF-28e, 900 μm |
Environmental Specification
| Working Temperature | -40~+70°C |

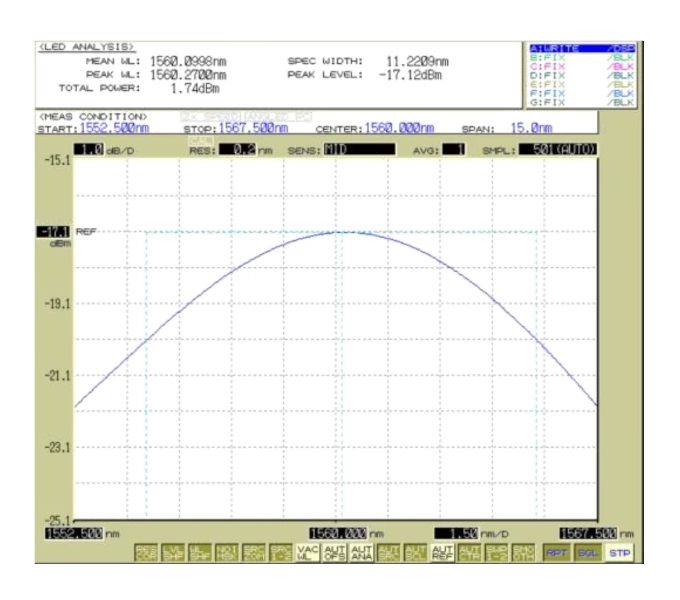

Optical Specification
| Center Wavelength | 1560nm |
| Output Power | ≤50mW |
| Spectral Width | 11nm |
| Power Stability @25°C | 1% |
| Power Stability @Full Temperature | 5% |
| Wavelength Stability @25°C | 5ppm |
| Wavelength Stability @Full Temperature | 150ppm |
| Spectral Modulation | 0.03dB |
| Polarization Extinction Ratio | 0.2dB |
Electrical Specification
| Supply Voltage | DC +5V/GNDV |
| Power Consumption @25°C | ≤1.5W |
| Power Consumption @Full Temperature | ≤4.0W |
Package Options
| Package A | Compact sizeΦ45 mm |
| Package B | Standard sizeΦ60 mm |
| Package C | Enhanced coolingΦ98 mm |
| Package D | Rack mount90 × 70 × 15 mm |
Fiber Options
| Standard | 80/170 μm SM |
| Optional | 125/250 μm SM |
| Jumper | SMF-28e, 900 μm |
Environmental Specification
| Working Temperature | -40~+70°C |

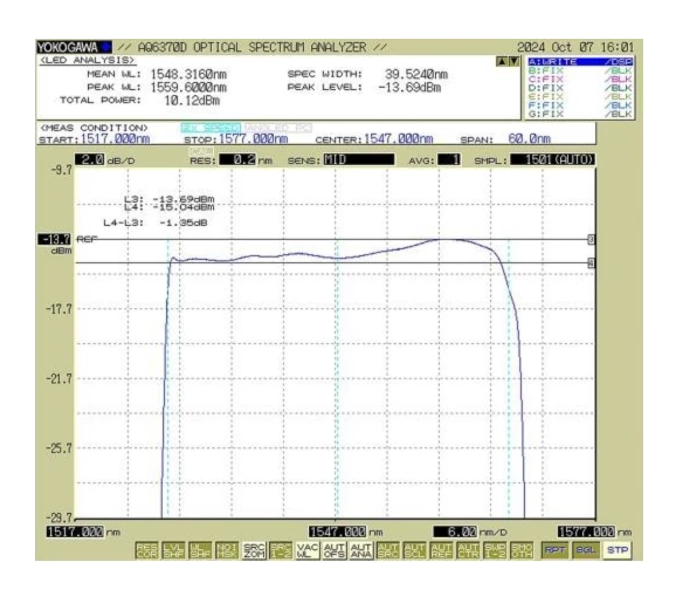

Optical Specification
| Wavelength Range | 1528~1566nm |
| Output Power | ≤200 (Tunable)mW |
| Spectral Width | 38nm |
| Spectral Flatness | ≤1.5dB |
| Power Stability @25°C | 1% |
| Power Stability @Full Temperature | 5% |
| Spectral Modulation | 0.1dB |
| Polarization Extinction Ratio | 0.2dB |
Electrical Specification
| Supply Voltage | DC +5V/GNDV |
| Power Consumption @25°C | ≤1.5W |
| Power Consumption @Full Temperature | ≤4.0W |
Package Options
| Package A | Compact sizeΦ45 mm |
| Package B | Standard sizeΦ60 mm |
| Package C | Enhanced coolingΦ98 mm |
| Package D | Rack mount90 × 70 × 15 mm |
Fiber Options
| Standard | 80/170 μm SM |
| Optional | 125/250 μm SM |
| Jumper | SMF-28e, 900 μm |
Environmental Specification
| Working Temperature | -10~+60°C |
Package Information
Technical Drawings
