Medium-Precision Fiber Optic Gyroscope Coil Series

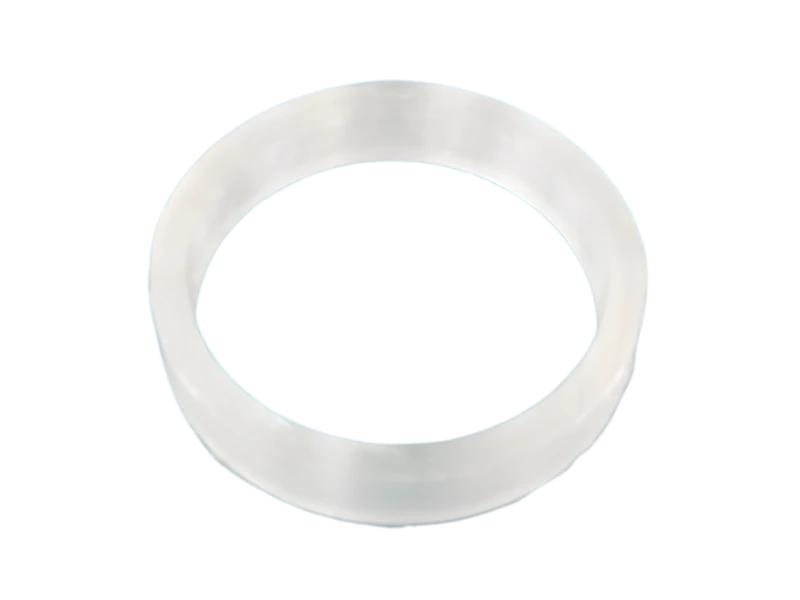

Fiber Optic Sensing Coil (FOG Component) · HXG46JZ120

Medium-precision fiber optic sensing coil series for high-precision fiber optic gyroscopes, with 1000 m to 1500 m fiber lengths on 90–100 mm class frames. Bias performance from ≤0.5 °/h down to ≤0.03 °/h with superior temperature stability; −45 °C to +80 °C operation.

Optical ParametersFiber Length
1000±10 m
Optical ParametersFiber Length
1500±10 m
Geometry ParametersInner Diameter
80.0±0.1 mm
Read full specifications and measurement conditions ↓
Request a quote View specifications
Medium-Precision Fiber Optic Gyroscope Coil Series
HXG46JZ120Product reference

Confirm configuration, interfaces and documentation with your inquiry.

The medium-precision fiber optic coil is engineered using fine-diameter fiber and advanced coating technology, backed by 20 years of research and production expertise. This coil delivers enhanced performance for applications requiring higher precision and stability.

Key Features

  • High reliability
  • Batch consistency
  • Excellent temperature and vibration performance

Applications

High-precision fiber optic gyroscopes (FOG)Advanced inertial navigation systemsPrecision attitude measurement devicesIndustrial control equipment

Technical Specifications

Geometry Parameters

Inner Diameter
80.0±0.1 mm
Outer Diameter
≤100.0 mm
Mean Diameter
90.0±0.5 mm
Height
25.0±0.1 mm

Optical Parameters

Fiber Length
1000±10 m
Attenuation Coefficient
≤-0.7 dB/km
Crosstalk (Normal Temp.)
≤-25 dB
Crosstalk (Full Temp.)
≤-22 dB

Performance Parameters

Bias
≤0.5 °/h
Thermal Drift
≤0.7 °/h
Magnetic Drift
≤0.6 °/h/G
Scale Factor Stability (Normal Temp.)
≤30 ppm
Scale Factor Stability (Full Temp.)
≤1500 ppm
Random Walk Coefficient
≤0.008 °/√h

Environmental Parameters

Operating Temperature
-45~+80 °C
MTTF
≥20 Yr.

Geometry Parameters

Inner Diameter
90.0±0.1 mm
Outer Diameter
≤120.0 mm
Mean Diameter
105.0±0.5 mm
Height
25.0±0.1 mm

Optical Parameters

Fiber Length
1500±10 m
Attenuation Coefficient
≤-0.6 dB/km
Crosstalk (Normal Temp.)
≤-22 dB
Crosstalk (Full Temp.)
≤-18 dB

Performance Parameters

Bias
≤0.03 °/h
Thermal Drift
≤0.05 °/h
Magnetic Drift
≤0.04 °/h/G
Scale Factor Stability (Normal Temp.)
≤20 ppm
Scale Factor Stability (Full Temp.)
≤1200 ppm
Random Walk Coefficient
≤0.003 °/√h

Environmental Parameters

Operating Temperature
-45~+80 °C
MTTF
≥20 Yr.
