Z-Q-XXSZMSS
ZQXXSZMSS
High-performance PIN quadrant detector modules with integrated pre-amplifier circuit for optical-to-electrical signal conversion and amplification
Customizable Parameters
Specifications shown are reference configurations. Most parameters can be adjusted to meet your application requirements.

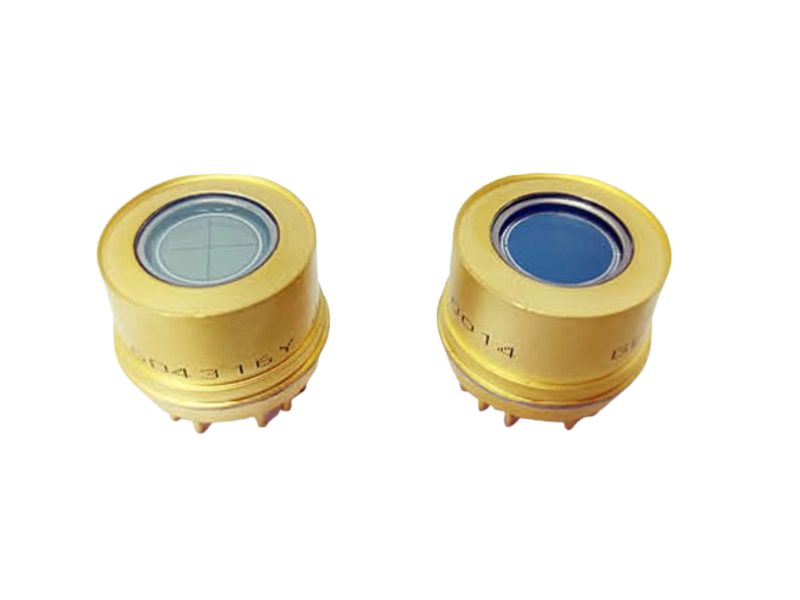

The ZQXXSZMSS series modules integrate single or dual quadrant silicon PIN photodiodes with built-in pre-amplifier circuits. These modules perform “optical-electrical-signal amplification” conversion by amplifying weak current signals and converting them into voltage output signals, making them ideal for precise laser beam detection and positioning applications.
Key Features
- Fast response time
- Integrated pre-amplifier circuit
- Multiple package options (KF08, TO)
- Multi-stage signal amplification
- Low noise optical-electrical conversion
Applications
Laser guidance
Specifications
Basic Parameters
| ZQXXSZMSS01 | 10KF08 |
| ZQXXSZMSS02 | 10KF08 |
| ZQXXSZMSS03 | 10KF08 |
| ZQXXSZMSS04 | 14TO, Φ31×7.5mm |
| ZQXXSZMSS05 | 11.3TO, Φ32.5×8.3mm |
| ZQXXSZMSS06 | 16TO, Φ32×15.8mm |
Electrical Parameters
| ZQXXSZMSS01 | +12+12 |
| ZQXXSZMSS02 | +12+12 |
| ZQXXSZMSS03 | +12+12 |
| ZQXXSZMSS04 | +5+5 |
| ZQXXSZMSS05 | +5+5 |
| ZQXXSZMSS06 | +12+12 |
Performance Parameters
| ZQXXSZMSS01 | 2 (100, 18 times)6 |
| ZQXXSZMSS02 | 3 (20, 20, 4.5 times)6 |
| ZQXXSZMSS03 | 4 (Single 3.5~4 times)5 |
| ZQXXSZMSS04 | 2 (16, 16 times)4 |
| ZQXXSZMSS05 | 4 (Single 3.2 times)3 |
| ZQXXSZMSS06 | 4 (Single 3.5~4 times)5 |
Request a Quote
All specifications can be customized. Tell us your requirements for a tailored solution.
