Asset ID: thermal-battery-28v
CDR028FLX
Control / Thermal Battery

CDR028FLX

28V thermal battery series offering flexible power solutions from 35g to 6.2kg, with operating durations from 60s to 3600s and fast activation under 0.5s

CDR028FLX01

0.035 kg Φ18×36 mm

CDR028FLX02

0.095 kg Φ28×52 mm

CDR028FLX03

0.125 kg Φ32×50 mm

Request Quote View Specifications

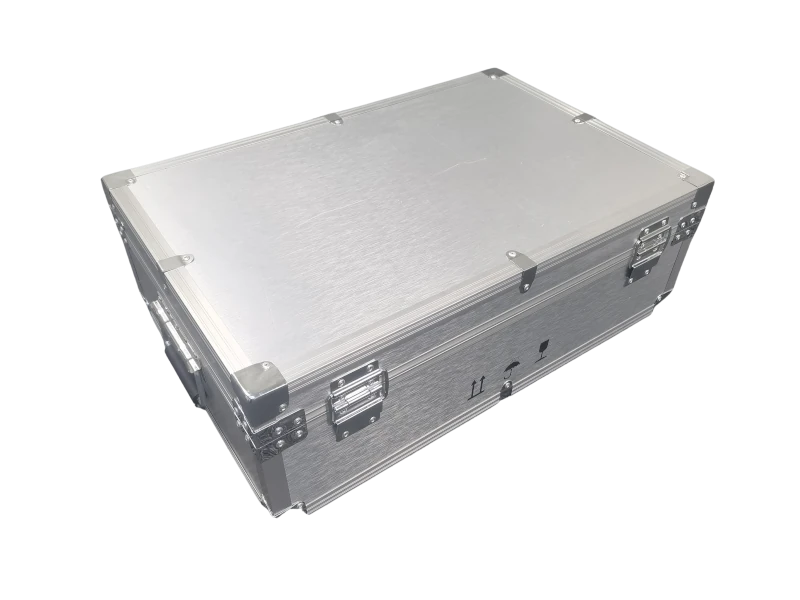

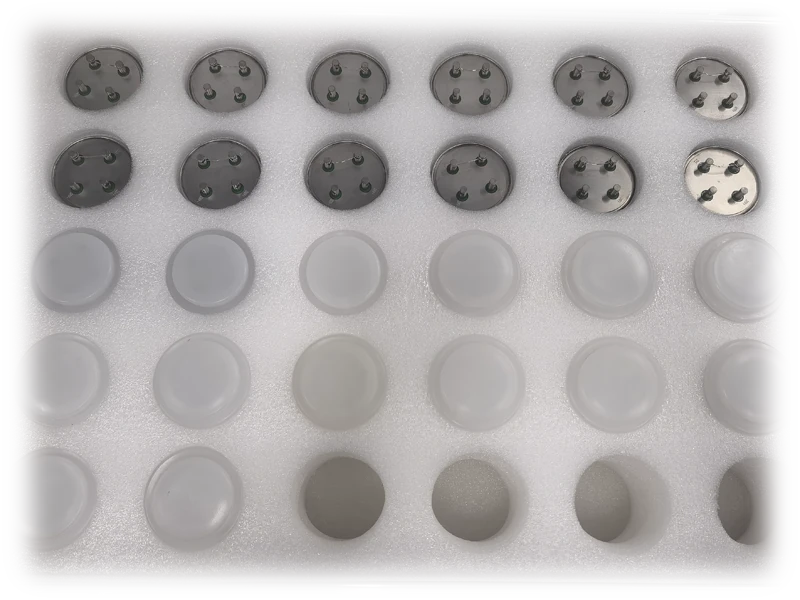

Product Gallery

The CDR028FLX series thermal batteries are high-performance power sources designed for various applications. With models ranging from compact 35g units to powerful 6.2kg systems, this series offers flexible solutions for different power requirements. Each model features specific working current profiles and operating durations, ensuring optimal performance for their intended applications.

Key Features

  • Wide range of capacities from 50 As to 60000 As
  • Fast activation time (0.5s - 2.5s)
  • Long operating duration capability
  • Multiple working current profiles
  • Compact and efficient design
  • Reliable performance

Applications

Power supply for guidance systemsEmergency power backupMilitary applicationsHigh-current pulse applicationsPortable power solutions

Technical Specifications

Basic Parameters

CDR028FLX01

0.035 kg

Φ18×36 mm

CDR028FLX02

0.095 kg

Φ28×52 mm

CDR028FLX03

0.125 kg

Φ32×50 mm

CDR028FLX04

0.160 kg

Φ36×55 mm

CDR028FLX05

0.280 kg

Φ40×80 mm

CDR028FLX06

0.280 kg

Φ45×63 mm

CDR028FLX07

0.320 kg

Φ50×60 mm

CDR028FLX08

0.480 kg

Φ54×82 mm

CDR028FLX09

1.020 kg

Φ63×125 mm

CDR028FLX10

0.850 kg

Φ67×90 mm

CDR028FLX11

1.800 kg

Φ78×140 mm

CDR028FLX12

2.200 kg

Φ85×140 mm

CDR028FLX13

2.750 kg

Φ85×175 mm

CDR028FLX14

3.900 kg

Φ95×205 mm

CDR028FLX15

6.200 kg

Φ100×295 mm

Performance Parameters

CDR028FLX01

<0.5 s

6 A

CDR028FLX02

<0.5 s

16 A

CDR028FLX03

<0.5 s

20 A

CDR028FLX04

<0.5 s

25 A

CDR028FLX05

<0.5 s

40 A

CDR028FLX06

<0.5 s

35 A

CDR028FLX07

<0.8 s

40 A

CDR028FLX08

<0.8 s

45 A

CDR028FLX09

<0.8 s

80 A

CDR028FLX10

<0.8 s

100 A

CDR028FLX11

≤1.0 s

130 A

CDR028FLX12

≤1.0 s

150 A

CDR028FLX13

≤1.0 s

180 A

CDR028FLX14

≤2 s

150 A

CDR028FLX15

≤2 s

150 A

Technical Notes

  1. Operating temperature range: -40°C to +70°C (for high-temperature thermal batteries, the operating temperature can reach up to +450°C)
  2. Pulse capability refers to the maximum current amplitude the battery can withstand, which is typically applied at the initial stage of operation after the thermal battery is fully activated
  3. As the voltage range of the thermal battery is broadened, its capacity can be further increased.

Technical Documentation

picture_as_pdf

Datasheet (PDF)

Full performance curves, pinout diagrams, and environmental testing results.

Request Access
deployed_code

CAD Model (STEP)

High-fidelity 3D geometry for structural integration and thermal modeling.

Request Access
verified_user

Compliance Documentation

Certification of origin, quality management protocols, and compliance documentation.

Request Access

Request a Quote

All specifications can be customized. Tell us your requirements for a tailored solution.
